For a B2B Jewelry buyer, a stone-setting method is not merely a visual choice. It changes how a gemstone is supported, how much metal remains around the seat, and how consistently a Jewelry Manufacturer can reproduce the design. A buyer comparing Chinese Jewelry Manufacturers with a Vietnam Jewelry Factory should therefore define the setting in drawings, not rely on a name alone.
Review stone shape, seat geometry, metal contact, manufacturing route, and intended use before approving a setting.
How to Evaluate a Jewelry Setting Before Production
Before production, confirm the stone, seat geometry, metal contact, manufacturing route, and intended use.
A Quick Setting and Sourcing Map
Setting example | Technical category | Retention method | B2B control point |
Solitaire | Prong / claw | Prongs over the crown | Check seat fit and tip finish |
Full-rim ring | Bezel | Metal rim around the stone | Control rim contact and stone level |
Open-gap ring | Tension-style* | Opposing metal pressure | Engineering and sizing review required |
Signet ring | Flush / gypsy | Metal compressed around an inset stone | Band thickness must suit stone depth |
Pearl stud | Peg-mounted bead or pearl* | Post, fit, and approved adhesive system | Confirm drilling and material compatibility |
Shared-prong row | Tiger-claw shared-prong style* | Pointed shared claws or beads | Define exact prong layout in CAD |
Diamond row | Bar | Vertical bars between stones | Control bar height and stone spacing |
Calibrated band | Channel | Two parallel channel walls | Use calibrated stones and even seats |
Engraved band | Bright-cut border setting* | Beads plus reflective cut borders | Specify border width and cut finish |
Vintage stone row | Fishtail setting* | Beads with V-shaped bright cuts | Approve motif and bead symmetry |
Gemstone field | Invisible | Hidden rails or grooves | Tight calibration and repair plan |
Casting project | Cast-in-place / stone-in-casting* | Metal cast around selected stones | Requires stone and thermal validation |
Domed ring | Pavé | Many small beads or prongs | Control stone map and bead coverage |
Bead-set row | Bead / raised-bead | Raised metal beads | Check bead size and crown contact |
Cabochon pendant | Wire-wrap | Formed wire around the stone | Control wire gauge and end finish |
Mixed-size surface | Snow / mixed-size pavé* | Mixed stones with minimal visible metal | Lock stone-size assortment and layout |
16 Jewelry Stone-Setting Techniques

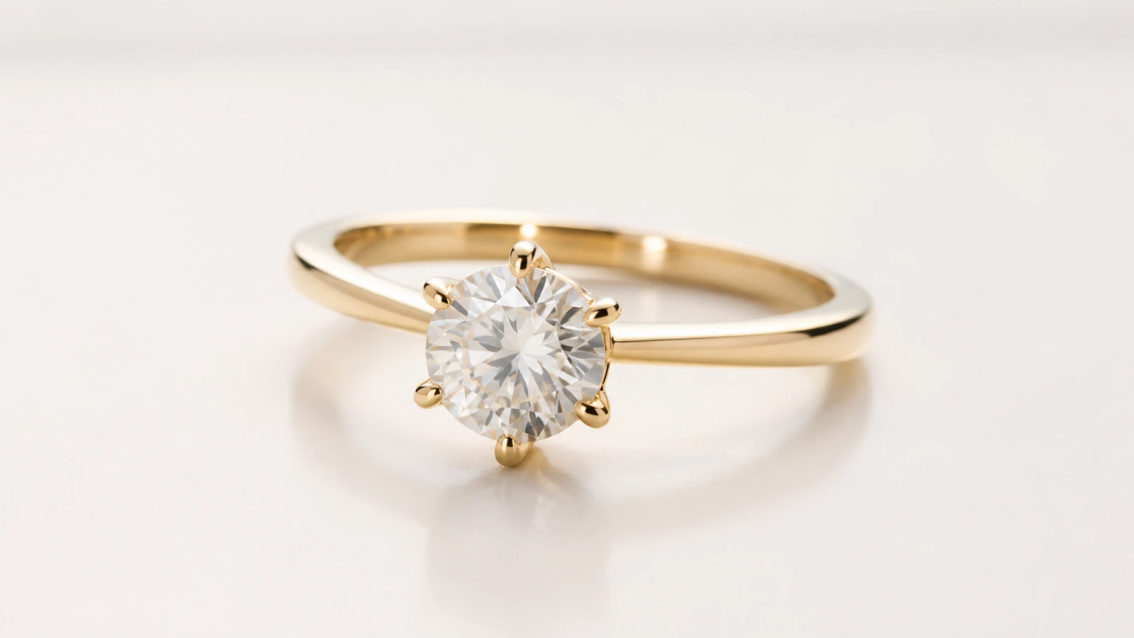

1. Prong or Claw Setting
Prongs are narrow metal elements that rise from the setting and bend over the gemstone edge. GIA describes round, claw, and V-shaped prongs; V-prongs are commonly used to protect pointed corners. For production, the bearing should fit the stone without visible gaps, and finished tips should not snag. Prong count and dimensions must be designed for the actual stone, not copied from a different size.

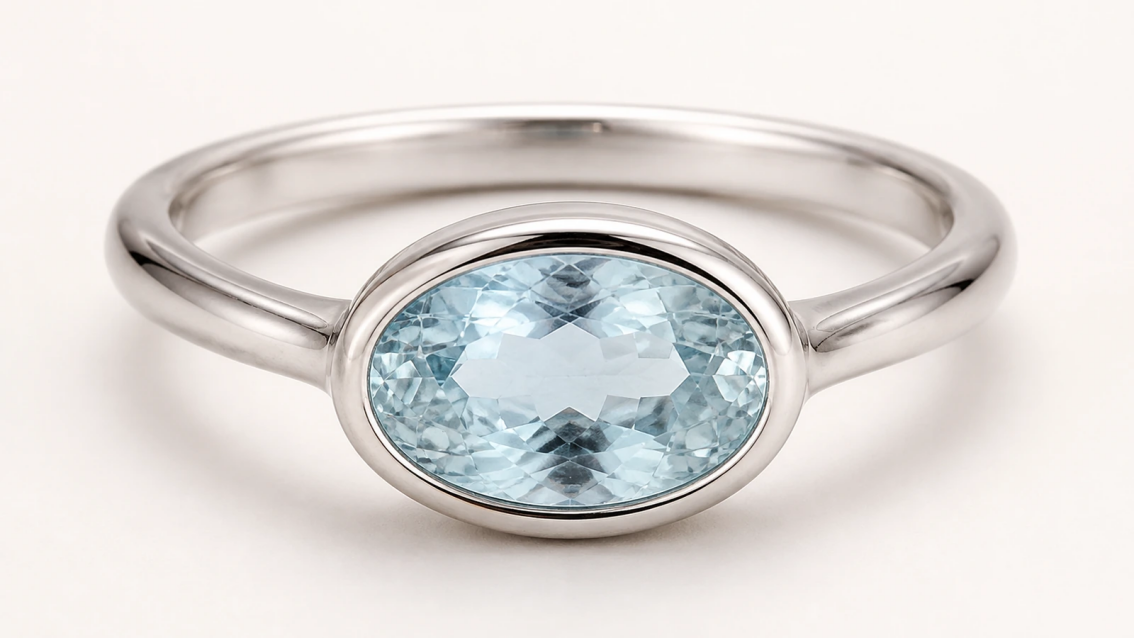

2. Bezel Setting
A bezel uses a metal rim around all or part of the gemstone perimeter. The rim is worked over the girdle area to retain the stone and create a smooth outline. Compared with an open prong design, a bezel covers more of the edge and generally provides more perimeter protection. Buyers should approve stone level, rim width, continuous contact, and the final symmetry of the border.

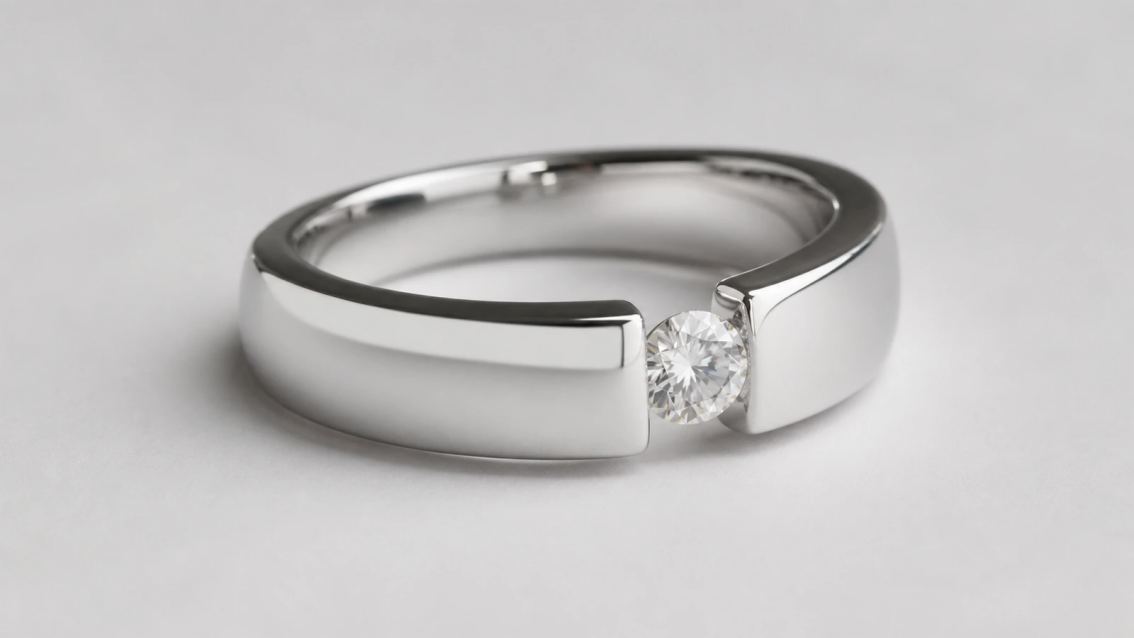

3. Tension-Style Setting
Tension-style is often used for a stone held between opposing metal sides. True tension settings use engineered pressure and are normally reserved for suitable hard gemstones. Because band alloy, spring behavior, stone dimensions, and resizing all matter, the RFQ should state whether the design is a true tension construction or only a tension-look mounting with hidden support.

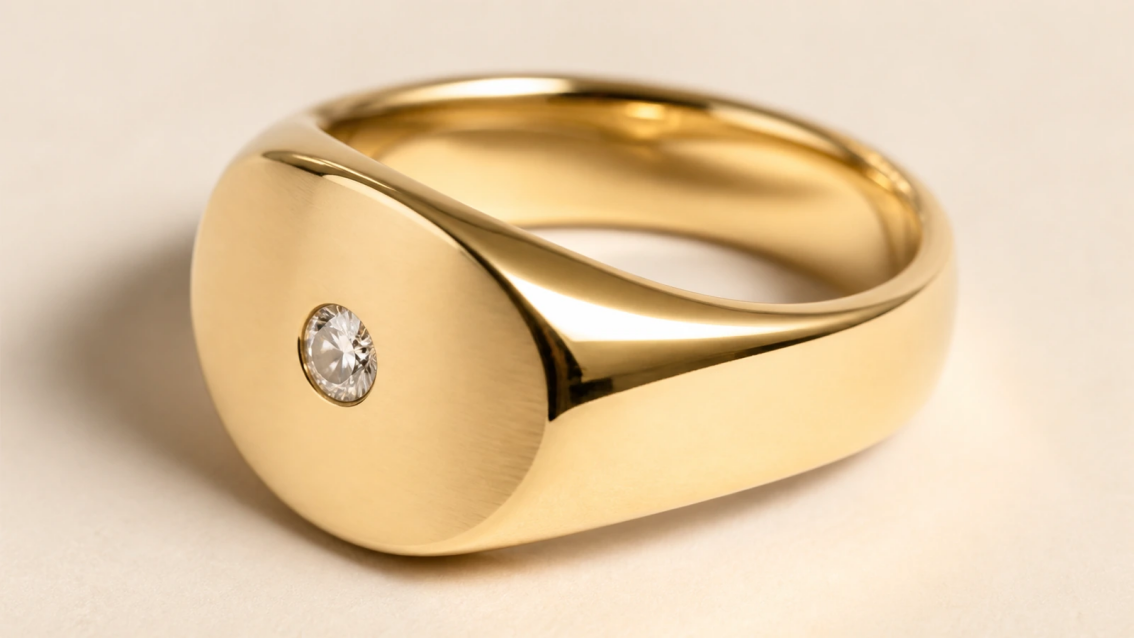

4. Flush or Gypsy Setting
In a flush setting, the stone sits inside the metal so its table is near the surrounding surface. Metal at the opening is worked toward the stone to retain it. GIA notes that this construction usually needs a wider or thicker section to accommodate stone depth. It is useful for signet-style and low-profile designs, but the seat, remaining wall thickness, and pavilion clearance must be checked before production.

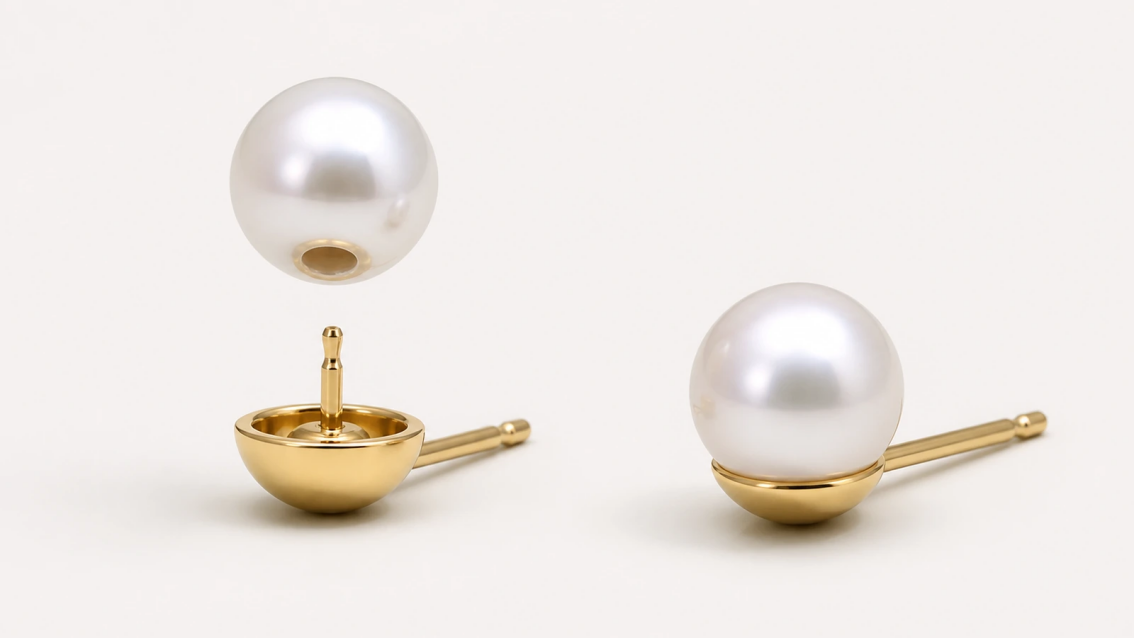

5. Peg-Mounted Pearl or Bead Setting
The reference construction shows a drilled spherical component fitted over a post, so a practical description is peg-mounted pearl or bead setting. The exact construction should still be defined in the product specification. Production control should cover drill diameter and depth, post geometry, clean mating surfaces, the approved adhesive system, cure conditions, and pull or handling checks appropriate to the product.

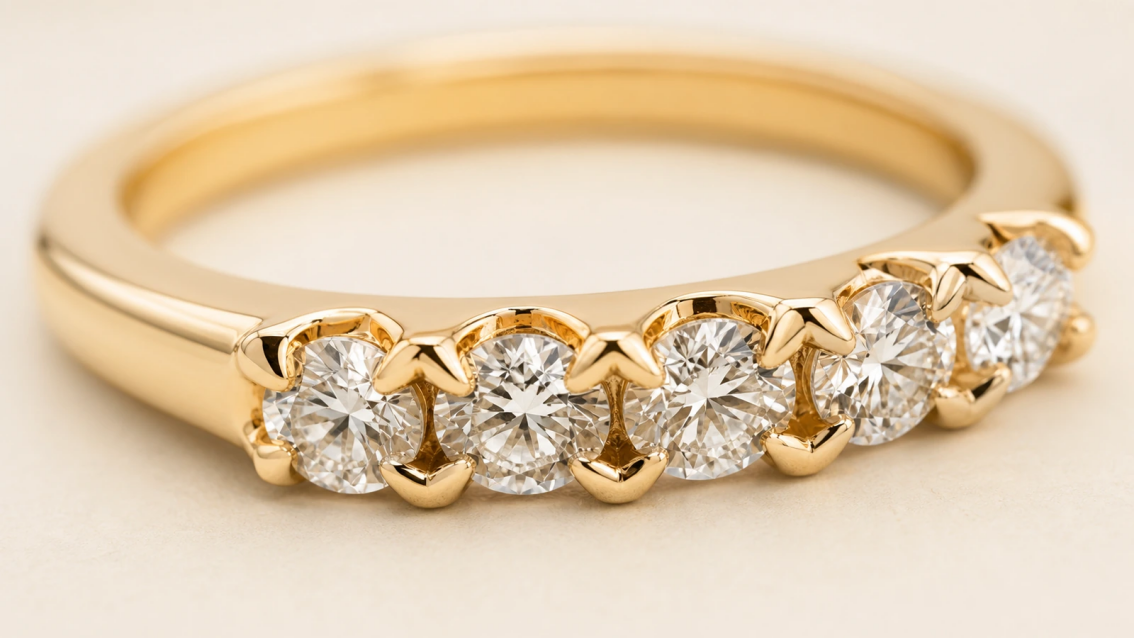

6. Tiger-Claw Shared-Prong Style
Tiger-claw is a regional workshop name, not a single standardized English setting category. The pictured construction uses sharply pointed claws or bead-like prongs around a row of small stones. For a buyer, the important information is the prong-sharing pattern, point shape, exposed stone edge, and seat depth. These details should be frozen in CAD and the approved sample rather than communicated only as “tiger claw.”

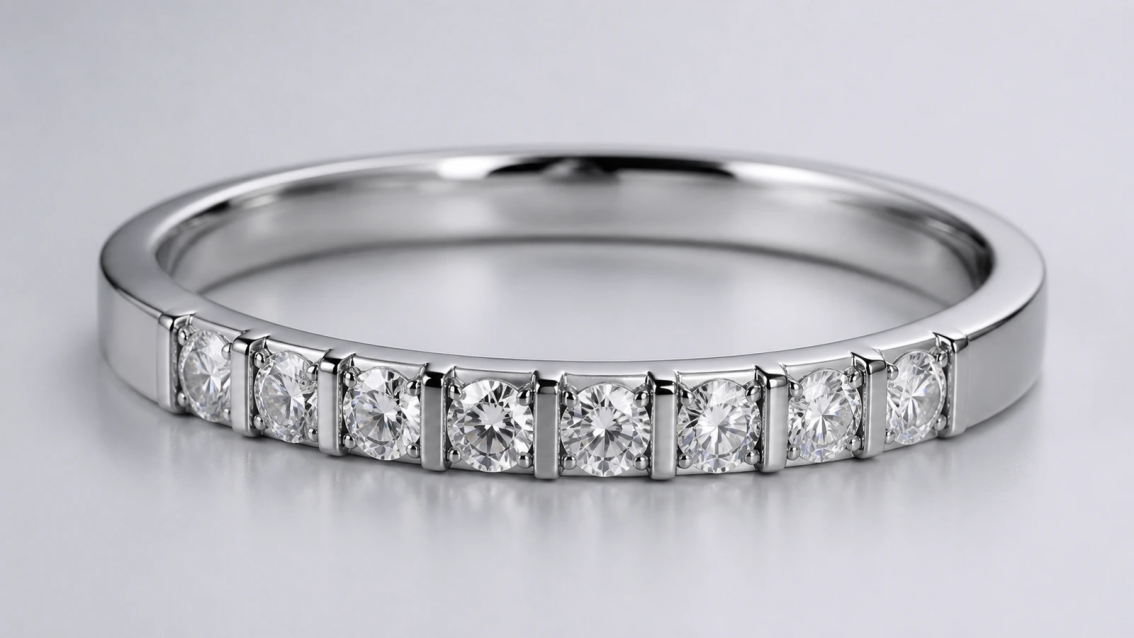

7. Bar Setting
Bar setting places gemstones between vertical metal bars. Unlike a continuous channel wall, each bar separates adjacent stones while leaving more of their sides visible. GIA describes bar setting as a balance between the openness of prongs and the structure of channel setting. Production drawings should define bar width and height, stone spacing, end protection, and whether the design can be resized without disturbing the row.

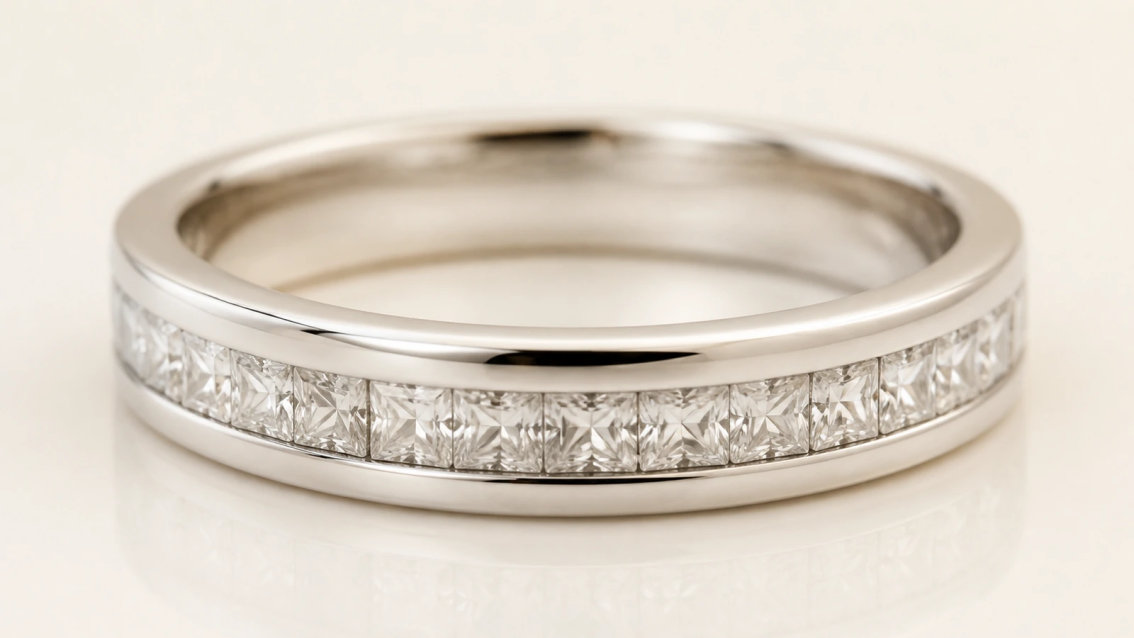

8. Channel Setting
Channel setting holds a line of calibrated gemstones between two parallel metal walls. Stones sit side by side with little visible metal between them, creating a clean continuous line. The factory must control stone calibration, channel width, seat level, end-stone retention, and wall continuity. Designs extending far around a ring may also limit later resizing, so size strategy should be decided before tooling or bulk production.

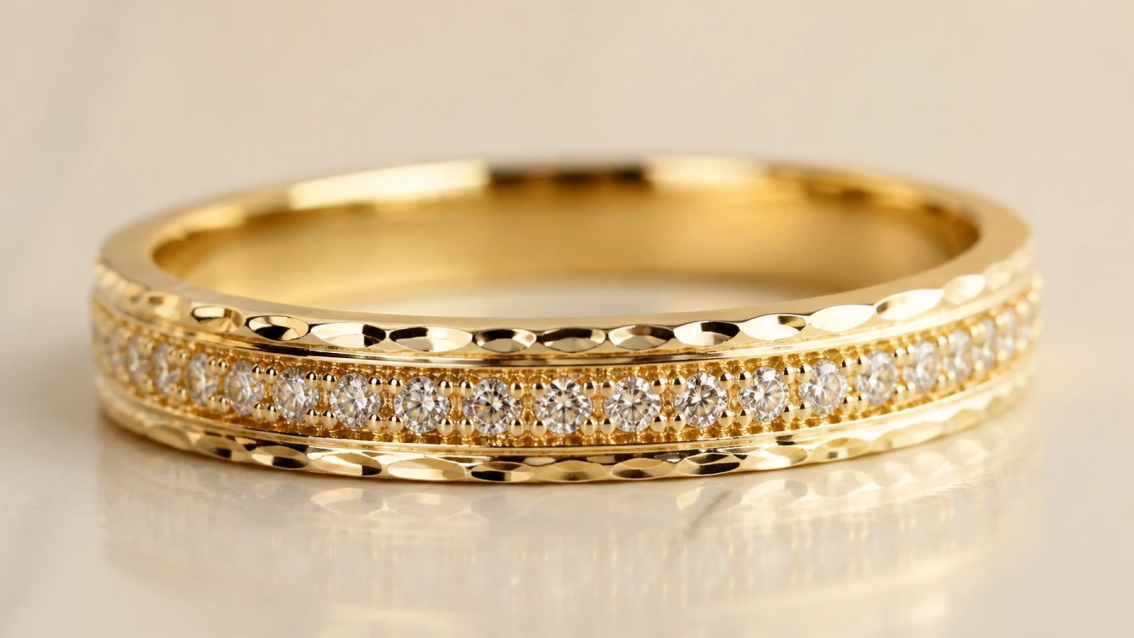

9. Bright-Cut Border Setting
Bright-cut border setting is best treated as a workshop term for a small-stone setting finished with reflective graver-cut borders. The stones may be secured by beads while the polished edges visually frame the row. A production brief should specify border width, cut angle, bead layout, corner treatment, and polishing limits. Excessive finishing can change the border or reduce setting metal, so the approved sample is the governing reference.

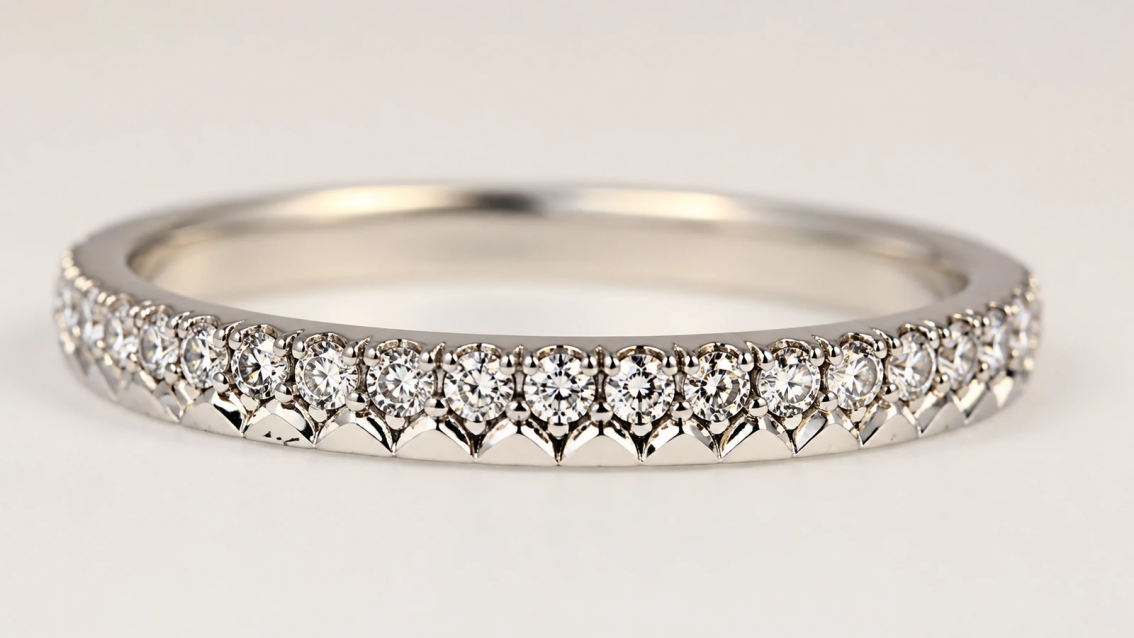

10. Fishtail Setting
Fishtail setting is a decorative bead-setting style in which V-shaped bright cuts create a repeating tail-like pattern around or between stones. Terminology and exact geometry vary among setters. For consistent Jewelry Production, the buyer should approve the number of beads per stone, the V-cut depth, the visible metal rhythm, and the side profile. The motif should remain symmetrical without exposing vulnerable stone edges.

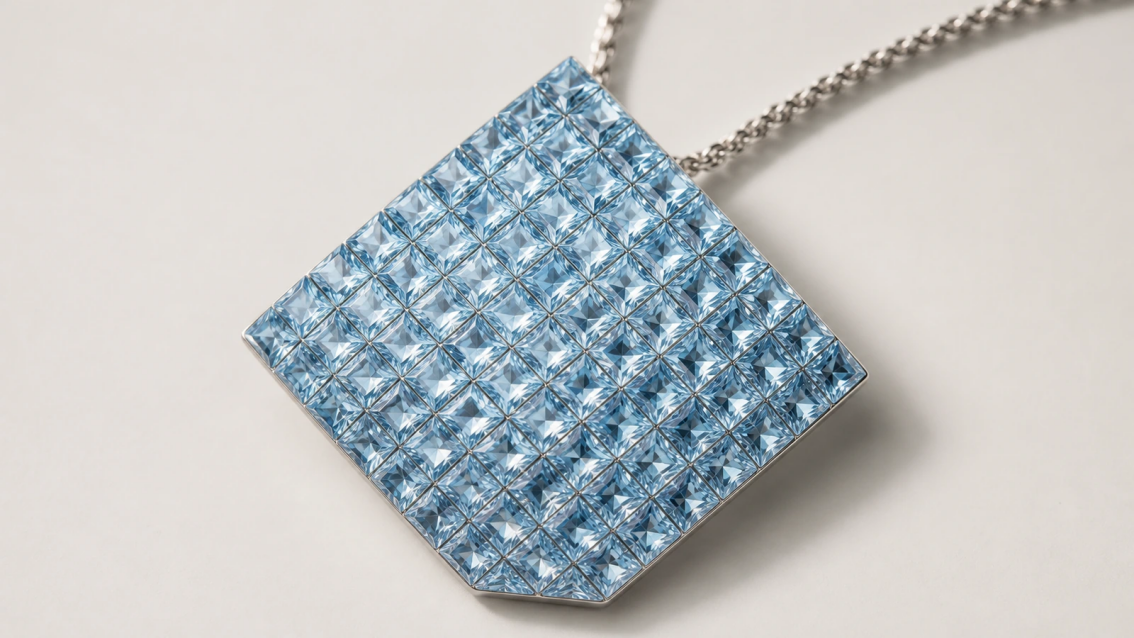

11. Invisible Setting
Invisible setting creates a surface of fitted stones with little visible metal from the top. Calibrated stones are typically prepared to engage hidden rails or supports beneath their visible edges. The method demands tight control of stone dimensions, groove consistency, rail alignment, and assembly sequence. Repairs or stone substitutions can be difficult, so buyers should secure replacement specifications before volume production.

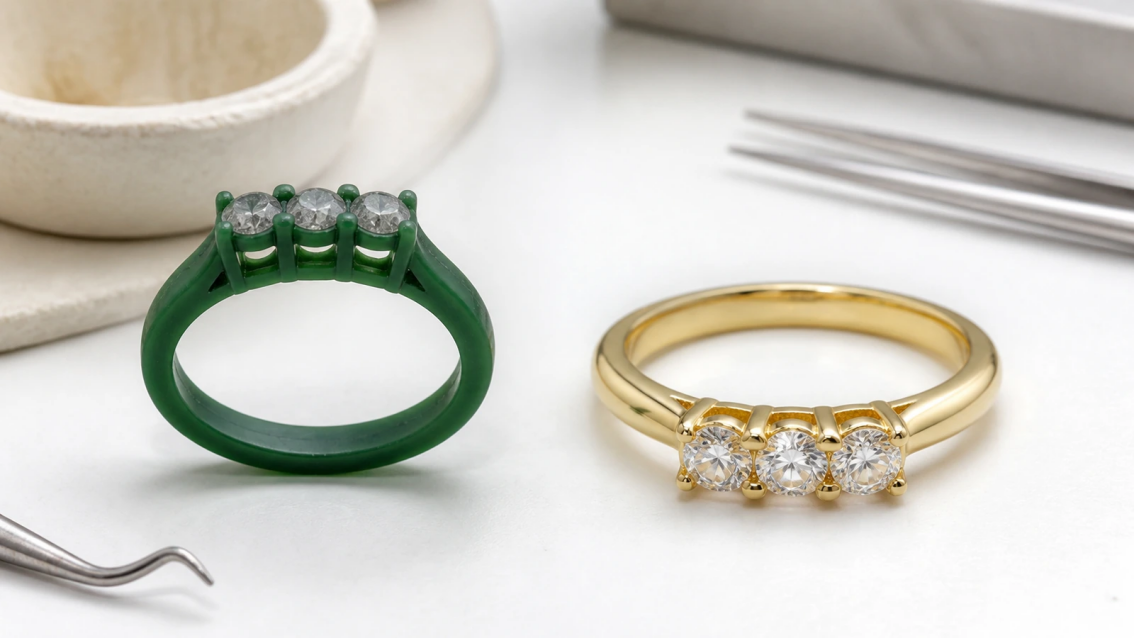

12. Cast-in-Place or Stone-in-Casting
Cast-in-place or stone-in-casting should not be confused with conventional sand casting. In this route, selected stones are positioned before metal casting and retained by the resulting structure. This route is Needs Testing: gemstone species, treatments, inclusions, thermal cycle, investment, alloy, shrinkage, and cleanup can affect results. A factory should validate the exact stone and process before quoting bulk production.

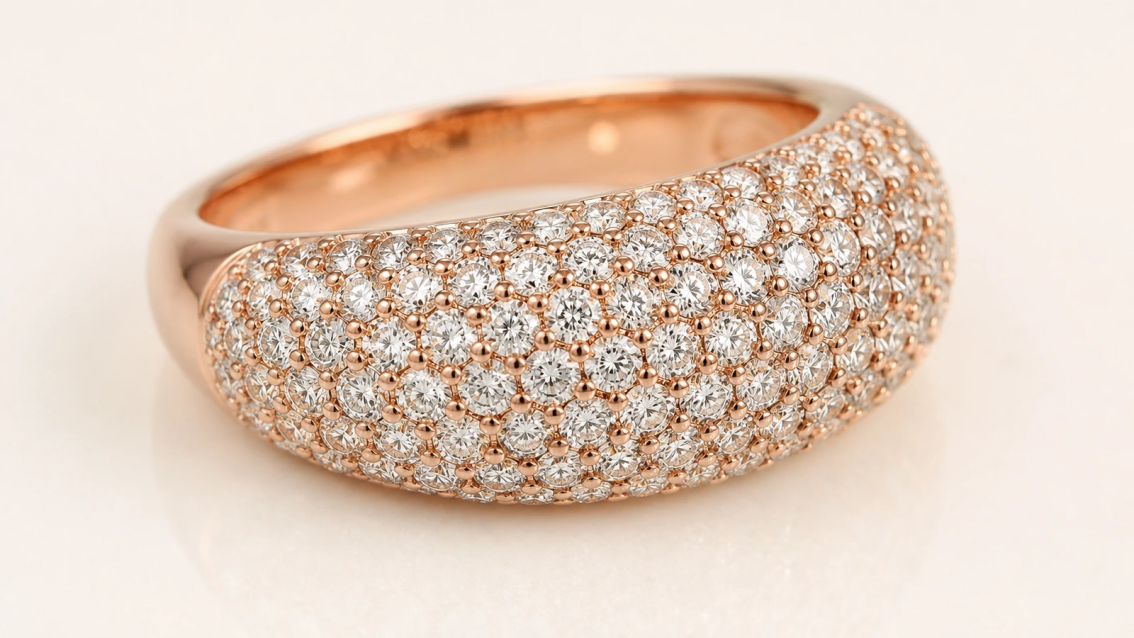

13. Pavé Setting
Pavé places many small gemstones close together so the surface appears covered with sparkle. GIA describes the stones as secured by tiny beads or prongs. Commercial consistency depends on a controlled stone map, calibrated size ranges, even spacing, sufficient bead contact, and careful finishing. Because many small retention points are involved, inspection should include stone movement, missing stones, damaged crowns, bead symmetry, and surface scratches.

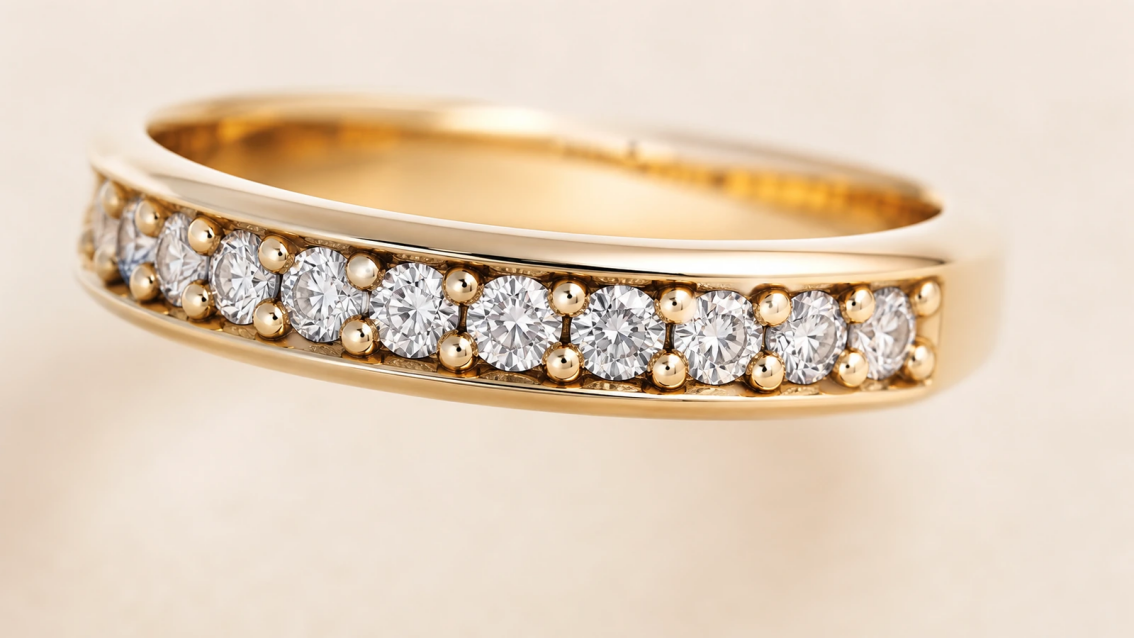

14. Bead or Raised-Bead Setting
In bead setting, small portions of surrounding metal are raised and formed over the gemstone crown. GIA Quality Assurance Benchmarks emphasize adequate bead contact and beads large enough to provide proper retention. For repeat orders, specify bead count, shape, contact position, seat depth, and cleanup around the stones. Beads should be functional and evenly finished, not merely decorative dots placed near an unsupported stone.

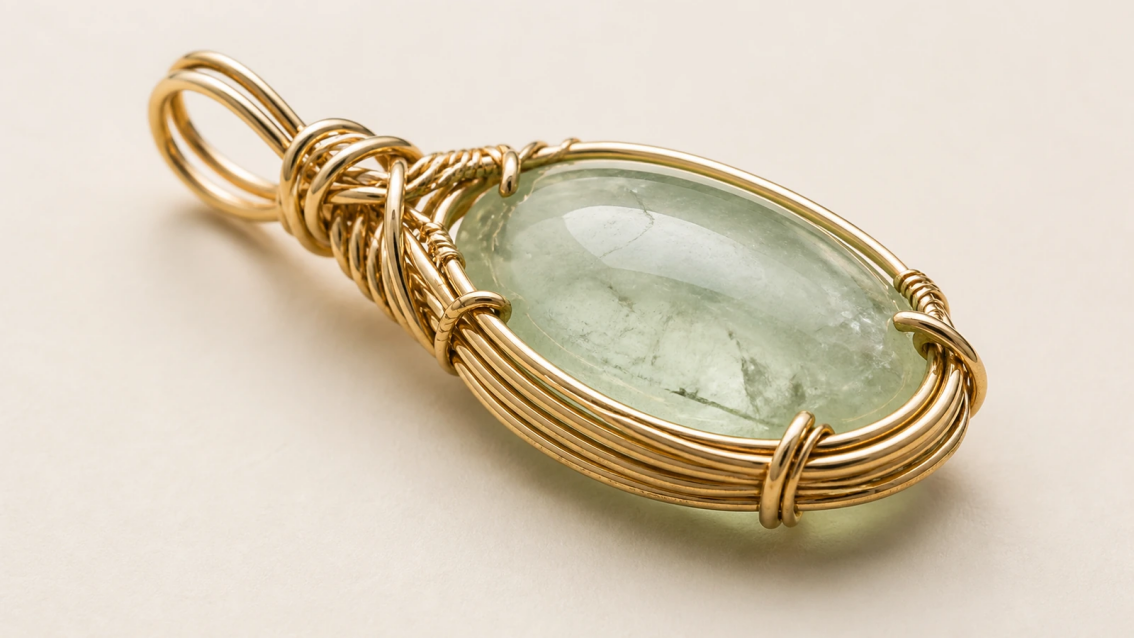

15. Wire-Wrap Setting
Wire-wrap setting retains or frames a stone with formed wire rather than a conventional cast seat. It is common in artisan and design-led jewelry, but the exact structure can range from decorative wrapping to a fully mechanical cage. A Custom Jewelry Manufacturer should receive the wire alloy, gauge, temper, number of wraps, end locations, stone protection points, and finishing standard. Decorative wire should not be assumed to provide retention unless the construction proves it.

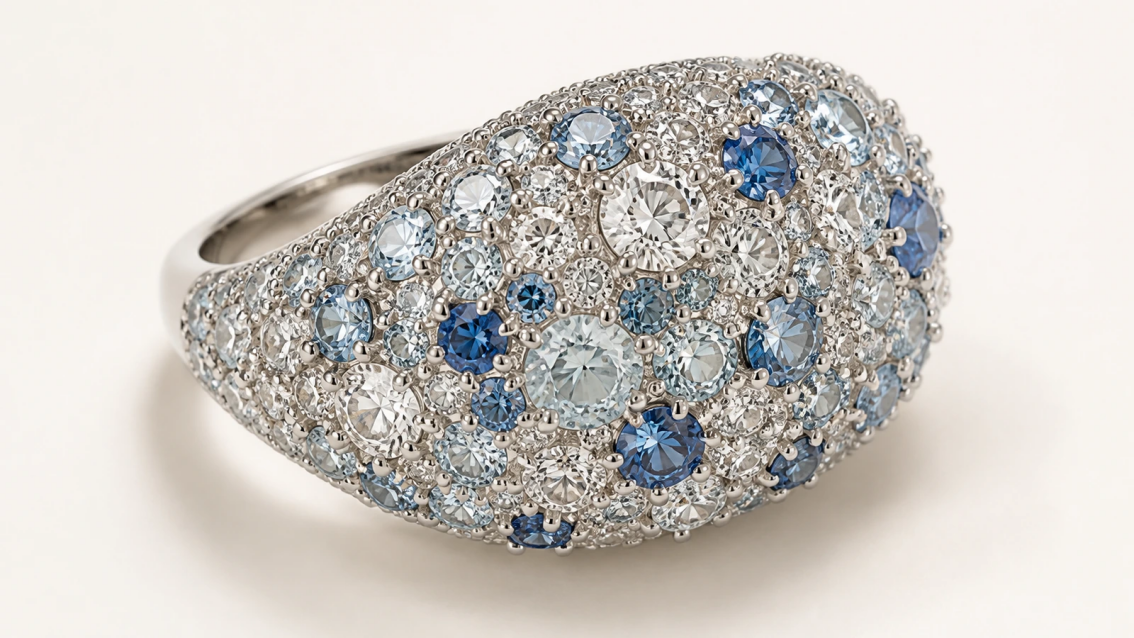

16. Snow or Mixed-Size Pavé Setting
Snow setting is a specialized workshop or high-jewelry term for a dense, irregular-looking field of mixed-size stones. The visual goal is a scattered surface with minimal obvious rows, but the underlying layout must still be engineered. The buyer should lock the size assortment, stone count, placement map, minimum metal bridges, bead strategy, and replacement policy. Random appearance is not random production; controlled mapping is essential for costing and repeatability.
From Setting Design to Repeat-Order Control

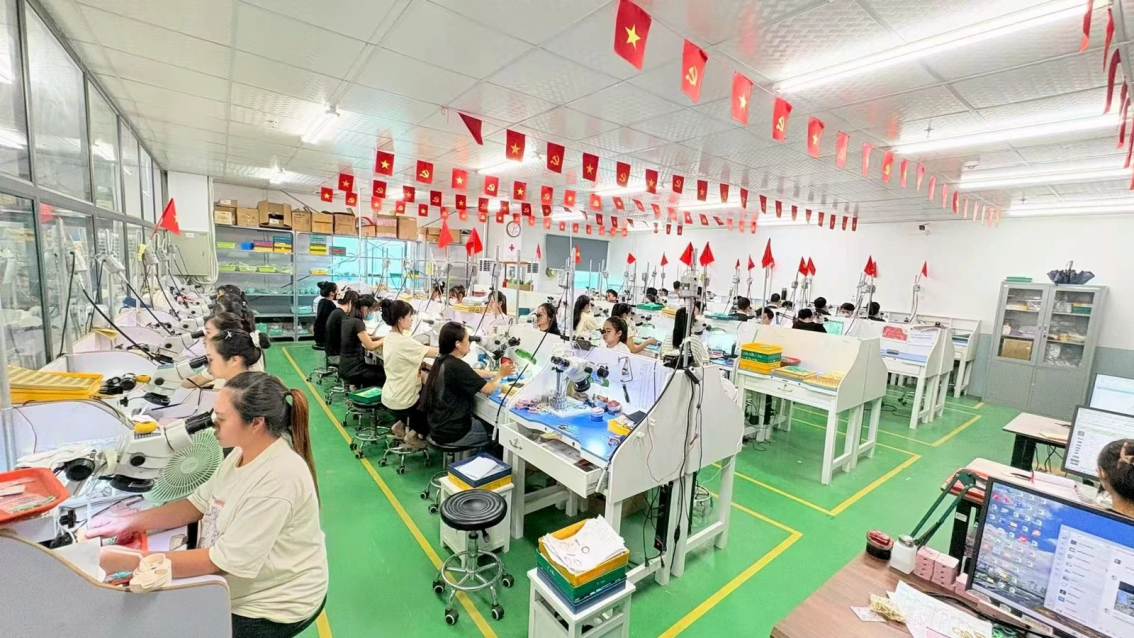

For projects developed with JINYI Jewelry (www.jyjew.com), the setting discussion should be integrated into material routing, CAD review, sampling, and quality control rather than treated as a decorative afterthought. Based on company-provided information, its product scope includes brass, 925 silver, special-order K-gold, stainless steel, zinc, and alloy programs across Guangzhou and Vietnam operations. The production team should confirm technical feasibility for each design before quotation.
Final Recommendation
No setting suits every project. Use prong or tension-style settings when an open appearance is appropriate; bezel or flush settings for lower profiles; channel or bar settings for orderly rows; and pave, bead, fishtail, bright-cut, snow, or invisible settings for surface coverage. Confirm gemstone, metal, geometry, finishing, testing, repairability, and repeat-order controls before production.
Planning a Stone-Set Jewelry Collection?
Send design files, dimensions, stone specifications, material, quantity, target price, market, testing, packaging, and schedule. For OEM Jewelry or ODM Jewelry, JINYI Jewelry (www.jyjew.com) can review CAD, sampling, setting trials, and quotation feasibility.
Technical verification basis: GIA Guide to Engagement Ring Settings; GIA Quality Assurance Benchmarks for prong, V-prong, and bead settings; and GIA bench guidance for bezel setting.
